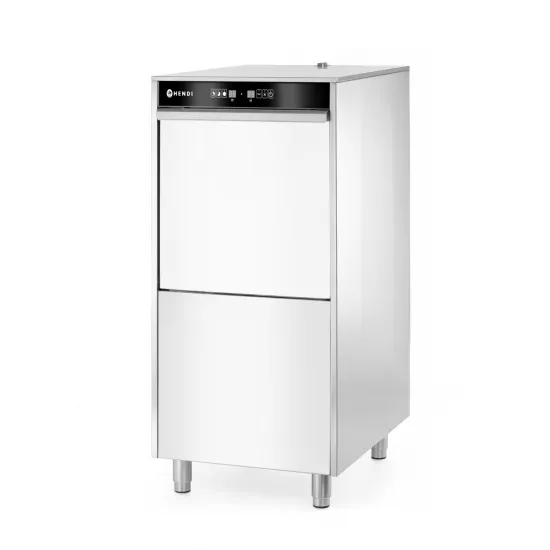

Dishwasher for large utensils - detergent dosing system and drain pump

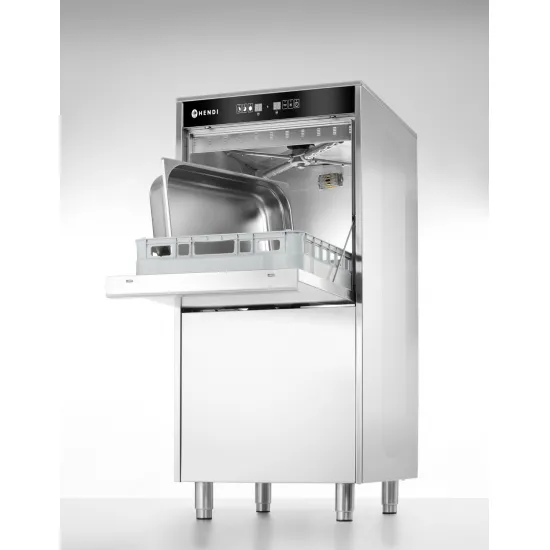

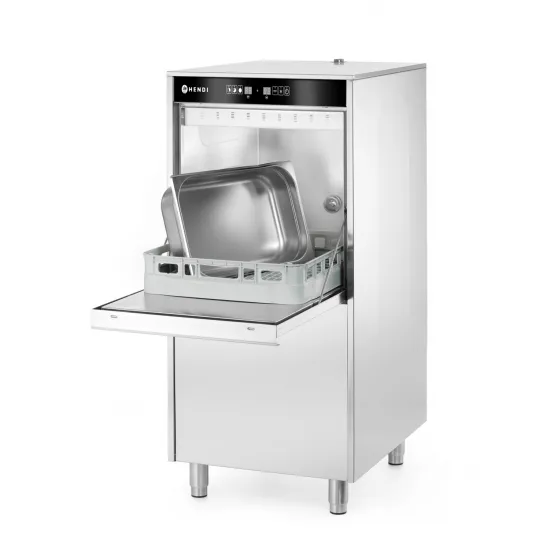

The dishwasher stands out as a specialized model, ideal for perfect washing and scalding of various types of dishes and utensils. It is particularly suitable for pots, GN containers, pastry trays with dimensions of 600x400 mm, flasks, trays, or cutlery.

The machine features three electronic control washing cycles of 120 seconds, 180 seconds, and 240 seconds. The maximum washing temperature is 60°C, and the rinsing temperature reaches up to 82°C.

The boiler of the appliance has a capacity of 7.4 liters and a power of 6 kW, while the tank has a capacity of 58 liters and a power of 6 kW.

The dishwasher features an electro-sensor control panel, which facilitates its operation. It is equipped with an automatic cleaning system, ensuring easy maintenance of the machine.

The machine has a high-quality double-layer stainless steel AISI 304 body, which provides corrosion resistance and long-lasting durability. The washing and rinsing arms are also made of stainless steel.

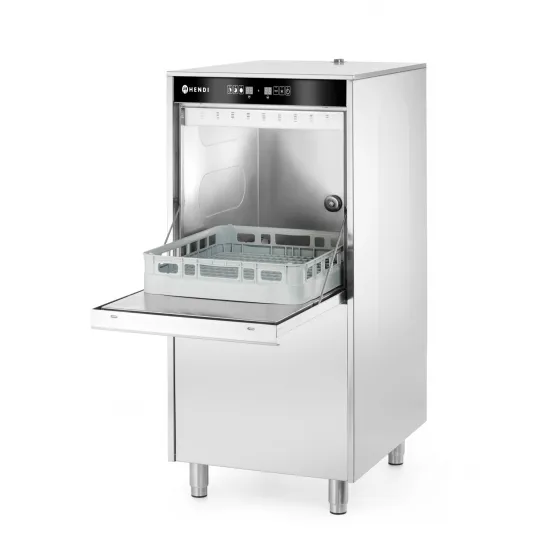

The dishwasher comes with a large basket with dimensions of 500x600 mm, providing ample space for placing dishes and utensils. The weight of the machine is about 57 kg, which is stable and durable during operation.

Technical parameters:

• Dimensions (L x W x H): 59.5 x 73 x 134 cm.
• Net weight: 94.8 kg.
• Voltage: 400 V
• Power: 7100 W

EQUIPMENT:

• Detergent dispenser.
• Rinse aid dispenser.
• Electronic thermometer in the boiler.
• Electronic thermometer in the tank.
• Washing pump 1.2 kW.
• Drain pump.
• Plate basket 500x600x(H)105 mm.
• Universal basket 500x600x(H)105 mm.
• Cutlery basket 110x110x(H)130 mm.
